Kumdogmillionaire Jan 13, 2018 9:14 PM

Quote:

Originally Posted by Notyrview (Post 8045883)
Whoa the white frames look great. I wasn't expecting that and it'll be a really nice contrast to WPW.

That's because if you pay attention you'd see that you are looking at the interior of the building. The white will not be on the outside.

rlw777 Jan 13, 2018 11:03 PM

Quote:

Originally Posted by Kumdogmillionaire (Post 8046211)
That's because if you pay attention you'd see that you are looking at the interior of the building. The white will not be on the outside.

That is the interior side but it looks like there is a white fin sticking out from the exterior side on the right

Kumdogmillionaire Jan 14, 2018 1:21 AM

Quote:

Originally Posted by rlw777 (Post 8046311)
That is the interior side but it looks like there is a white fin sticking out from the exterior side on the right

Maybe, but the renderings make it pretty clear that it's basically a glass curtain wall

KWillChicago Jan 14, 2018 1:16 PM

Harry, in your last picture. I was just wondering if those side beams running along the piles are an indication of where the low level floors will be, or are they just there to support the crossbar support beams running across?

harryc Jan 14, 2018 1:29 PM

Quote:

Originally Posted by KWillChicago (Post 8046591)
Harry, in your last picture. I was just wondering if those side beams running along the piles are an indication of where the low level floors will be, or are they just there to support the crossbar support beams running across?

The beams running horizontally along the sheet piles (whalers) appear to be placed for maximum efficiency in supporting the wall. On other projects they have not had any relation to eventual floors.

KWillChicago Jan 14, 2018 6:56 PM

Thank you sir. Please keep the photo's coming.

Fvn Jan 14, 2018 11:23 PM

Walsh's website says that theirs gonna be a 6 story below grade parking garage but that hole looks like it could barely fit 4. I guess grade in this sense is wolf point plaza, or orleans street.

BVictor1 Jan 15, 2018 12:35 AM

Quote:

Originally Posted by Fvn (Post 8046977)
Walsh's website says that theirs gonna be a 6 story below grade parking garage but that hole looks like it could barely fit 4. I guess grade in this sense is wolf point plaza, or orleans street.

Garage ceiling heights tend to be quite low.

Fvn Jan 15, 2018 1:33 AM

Quote:

Originally Posted by BVictor1 (Post 8047021)
Garage ceiling heights tend to be quite low.

I get that, but if one level of the parking garage were to be under the bottom of the lowest level of bracing (hypothetically, that seems like it would be the lowest height a floor could be) then you would still only be able to fit 4 in, not including slab thicknesses/any other foundations they construct (the pile caps seem to be dug in though and the elevator mat should be going in that big hole in the center). Although upon further reflection, you're probably right though because if I recall the sheet piles were 55 feet and assuming they extend 5 feet below the final depth of the excavation (which they usually do) that's still around 8 feet for each level which seems 'bout right for a floor height in a garage. We'll have to wait and see though.

LouisVanDerWright Jan 15, 2018 3:50 PM

Are you considering the above grade but below upper level streets space? The garage may be partially "buried" under the Riverwalk and upper level streets.

Fvn Jan 15, 2018 4:09 PM

Quote:

Originally Posted by LouisVanDerWright (Post 8047429)
Are you considering the above grade but below upper level streets space? The garage may be partially "buried" under the Riverwalk and upper level streets.

I'm thinking it'll be like wolf point west's parking except wolf point east will be built on top its parking. "Flush" with the upper street levels

Fvn Jan 15, 2018 4:13 PM

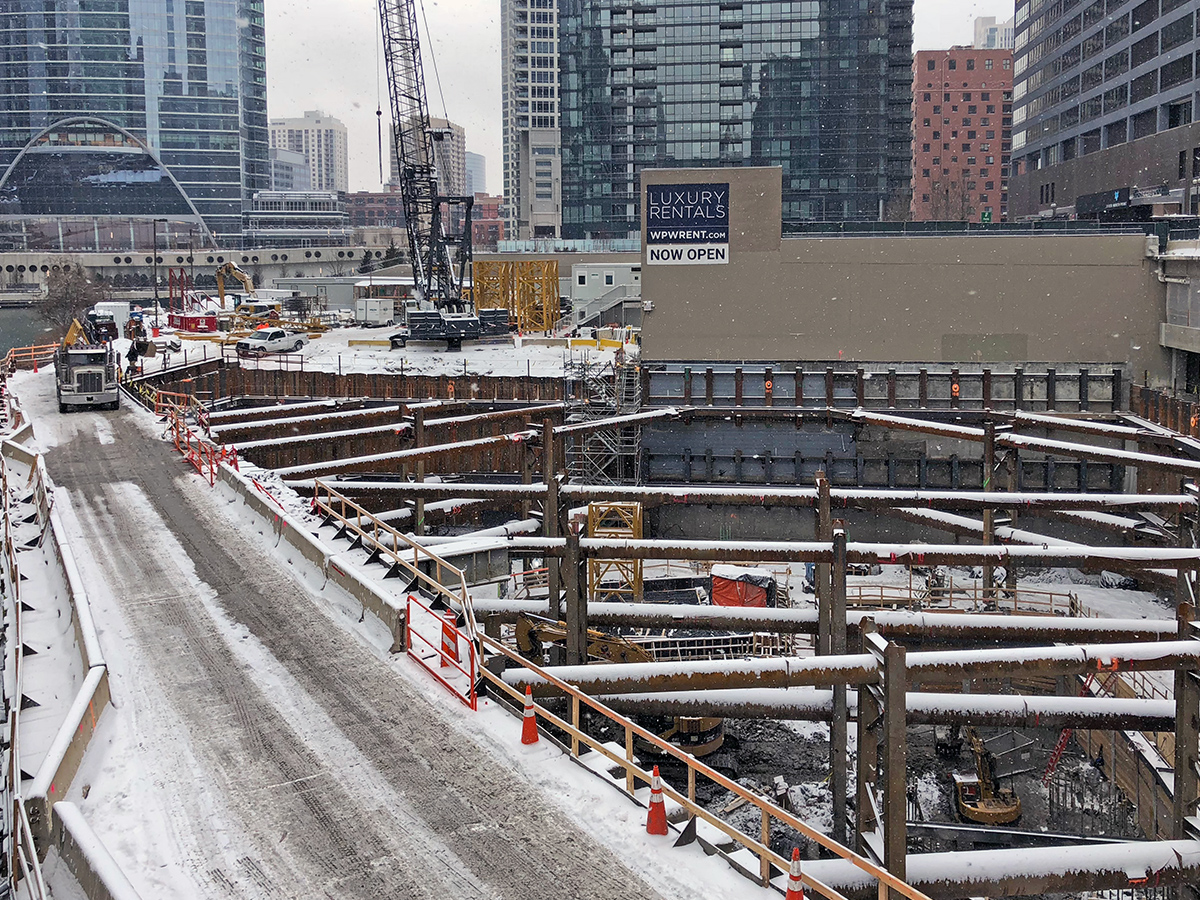

Also looks like the tower crane is going up today

jc5680 Jan 15, 2018 7:13 PM

^^

SolarWind Jan 17, 2018 3:36 AM

January 16, 2018


















Notyrview Jan 17, 2018 12:01 PM

Yessss, finally. are the same workers in the hole going to ride this to the top? i hope so. they deserve it.

SolarWind Jan 18, 2018 1:37 AM

January 17, 2018


Fvn Jan 18, 2018 1:44 AM

https://pbs.twimg.com/media/DTxqVn3W0AI1UYj.jpg:large
https://twitter.com/thebiggreenw/sta...54143654629376

left of center Jan 18, 2018 1:57 AM

The beast rises! :cheers:

KWillChicago Jan 18, 2018 2:52 AM

Can I get a walsh, walsh.

harryc Jan 18, 2018 5:05 AM

Jan 16



Divine Guidance for the rigging




The windows - from the outside.


Jan 17
